首頁進口晶振泰藝晶振X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振

X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振

編號：59187388
頻率：38.4MHZ
尺寸：1.6*1.2mm

X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振，尺寸1612mm,頻率38.4MHZ，TAITIEN泰藝晶振，臺灣TAITIEN晶振，1612mm超小型晶振，石英晶體，石英貼片晶振，水晶振動子，無源貼片晶振，SMD晶振，石英晶體諧振器...

X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振，尺寸1612mm,頻率38.4MHZ，TAITIEN泰藝晶振，臺灣TAITIEN晶振，1612mm超小型晶振，石英晶體，石英貼片晶振，水晶振動子，無源貼片晶振，SMD晶振，石英晶體諧振器，38.4MHZ貼片晶振，石英水晶振動子，無源晶振，6G移動電話晶振，藍牙專用晶振，無線局域網晶振，辦公自動化晶振，視頻專用晶振，音頻晶振，低損耗晶振，低功耗晶振，高性能晶振，高品質石英晶振，具有高性能的特點。
貼片晶振產品超級適合用于藍牙，移動電話，無線局域網。辦公自動化。還可以廣泛應用于音頻和視頻等領域。X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振.

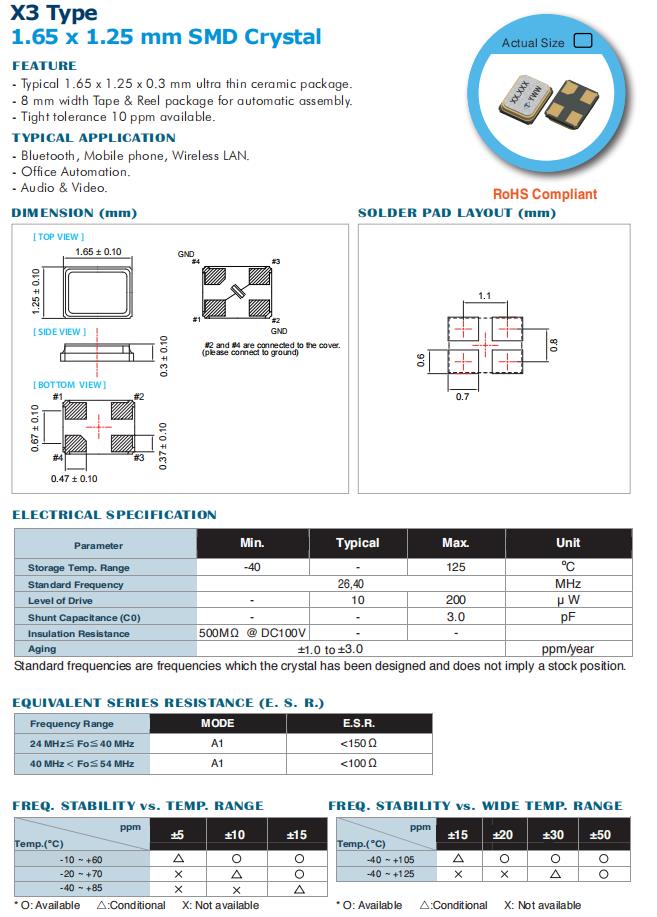

X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振 參數表

Parameter	min.	Typical	Max.	Unit
Storage Temp. Range	--40	-	125	oC
Standard Frequency	2,640			MHz
Level of Drive	-	10	200	W
Shunt Capacitance (C0)	-	-	3.0	pF
Insulation Resistance	500M Q @ DC100V	-	-
Aging	±1.0 to ±3.0			ppm/year

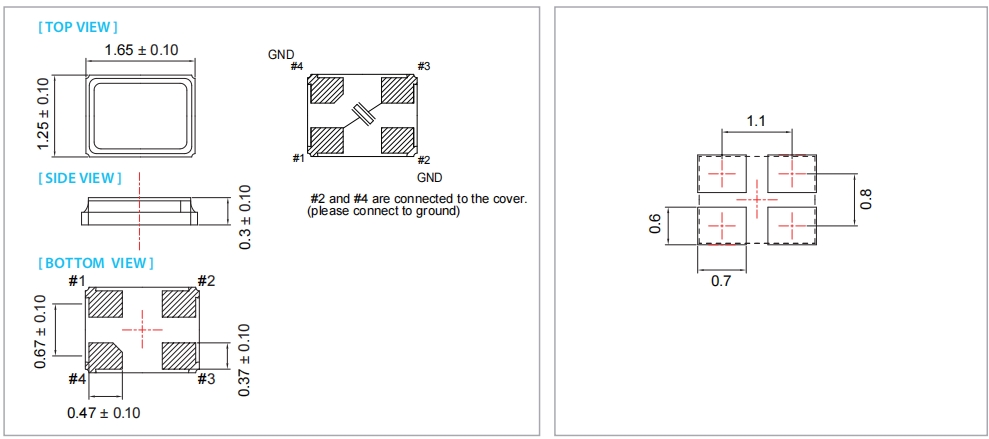

X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振 尺寸圖
X3LEECNANF-38.400000,6G移動電話晶振,臺灣泰藝X3晶振
貼片無源晶振產品特性：
-典型的1.65x1.25x0.3mm超薄陶瓷包裝。
- 8mm寬的膠帶和卷軸包裝，用于自動組裝。
-緊密公差10ppm可用。

Manufacturer Part Number原廠編碼	進口晶振	Series型號	Type 系列	Frequency	Operating Temperature 工作溫度
X3AEEJNANF-27.000000	Taitien晶振	X3	MHz Crystal	27MHz	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	MHz Crystal	27.12MHz	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	MHz Crystal	30MHz	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	MHz Crystal	38.4MHz	-40°C ~ 105°C
X3AEELNANF-26.000000	Taitien晶振	X3	MHz Crystal	26MHz	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	MHz Crystal	27MHz	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	MHz Crystal	27.12MHz	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	MHz Crystal	30MHz	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	MHz Crystal	38.4MHz	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	MHz Crystal	40MHz	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	MHz Crystal	48MHz	-40°C ~ 85°C
X3LEECNANF-26.000000	Taitien晶振	X3	MHz Crystal	26MHz	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	MHz Crystal	27MHz	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	MHz Crystal	27.12MHz	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	MHz Crystal	30MHz	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	MHz Crystal	38.4MHz	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	MHz Crystal	40MHz	-20°C ~ 70°C
X3LEECNANF-48.000000	Taitien晶振	X3	MHz Crystal	48MHz	-20°C ~ 70°C
X3LEEJNANF-27.000000	Taitien晶振	X3	MHz Crystal	27MHz	-40°C ~ 105°C
X3LEEJNANF-27.120000	Taitien晶振	X3	MHz Crystal	27.12MHz	-40°C ~ 105°C
X3LEEJNANF-30.000000	Taitien晶振	X3	MHz Crystal	30MHz	-40°C ~ 105°C
X3LEEJNANF-38.400000	Taitien晶振	X3	MHz Crystal	38.4MHz	-40°C ~ 105°C
X3LEEJNANF-48.000000	Taitien晶振	X3	MHz Crystal	48MHz	-40°C ~ 105°C
X3LEELNANF-26.000000	Taitien晶振	X3	MHz Crystal	26MHz	-40°C ~ 85°C
X3LEELNANF-27.000000	Taitien晶振	X3	MHz Crystal	27MHz	-40°C ~ 85°C
X3LEELNANF-27.120000	Taitien晶振	X3	MHz Crystal	27.12MHz	-40°C ~ 85°C
X3LEELNANF-30.000000	Taitien晶振	X3	MHz Crystal	30MHz	-40°C ~ 85°C
X3LEELNANF-38.400000	Taitien晶振	X3	MHz Crystal	38.4MHz	-40°C ~ 85°C
X3LEELNANF-40.000000	Taitien晶振	X3	MHz Crystal	40MHz	-40°C ~ 85°C
X3LEELNANF-48.000000	Taitien晶振	X3	MHz Crystal	48MHz	-40°C ~ 85°C
X3LEELNANF-50.000000	Taitien晶振	X3	MHz Crystal	50MHz	-40°C ~ 85°C
X3LEEJNANF-50.000000	Taitien晶振	X3	MHz Crystal	50MHz	-40°C ~ 105°C
X3LEEJNANF-40.000000	Taitien晶振	X3	MHz Crystal	40MHz	-40°C ~ 105°C
X3AEEJNANF-40.000000	Taitien晶振	X3	MHz Crystal	40MHz	-40°C ~ 105°C
X3AEELNANF-32.000000	Taitien晶振	X3	MHz Crystal	32MHz	-40°C ~ 85°C
X3LEECNANF-32.000000	Taitien晶振	X3	MHz Crystal	32MHz	-20°C ~ 70°C
X3LEELNANF-32.000000	Taitien晶振	X3	MHz Crystal	32MHz	-40°C ~ 85°C
X3LEEJNANF-26.000000	Taitien晶振	X3	MHz Crystal	26MHz	-40°C ~ 105°C
X3AEEJNANF-26.000000	Taitien晶振	X3	MHz Crystal	26MHz	-40°C ~ 105°C
X3AEEJNANF-48.000000	Taitien晶振	X3	MHz Crystal	48MHz	-40°C ~ 105°C
X3AEEJNANF-50.000000	Taitien晶振	X3	MHz Crystal	50MHz	-40°C ~ 105°C
X3LEEJNANF-32.000000	Taitien晶振	X3	MHz Crystal	32MHz	-40°C ~ 105°C
X3AEELNANF-50.000000	Taitien晶振	X3	MHz Crystal	50MHz	-40°C ~ 85°C
X3AEEJNANF-32.000000	Taitien晶振	X3	MHz Crystal	32MHz	-40°C ~ 105°C
X2AEECNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-20°C ~ 70°C
X2AGHINANF-48.000000	Taitien晶振	X2	MHz Crystal	48MHz	-10°C ~ 60°C
X2CGGCSANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-20°C ~ 70°C
X2CGGCSANF-30.000000	Taitien晶振	X2	MHz Crystal	30MHz	-20°C ~ 70°C
X2DCCCNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-20°C ~ 70°C
X2DEECNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-20°C ~ 70°C
X2DEECNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-20°C ~ 70°C
X2FCCLNANF-16.000000	Taitien晶振	X2	MHz Crystal	16MHz	-40°C ~ 85°C
X2FCCLNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-40°C ~ 85°C
X2GCELNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-40°C ~ 85°C
X2GCELNANF-25.000000	Taitien晶振	X2	MHz Crystal	25MHz	-40°C ~ 85°C
X2GEECNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-20°C ~ 70°C
X2GEGLNANF-24.000000	Taitien晶振	X2	MHz Crystal	24MHz	-40°C ~ 85°C
X2GGGLNANF-12.000000	Taitien晶振	X2	MHz Crystal	12MHz	-40°C ~ 85°C
X3DBBCNANF-26.000000	Taitien晶振	X3	MHz Crystal	26MHz	-20°C ~ 70°C
X3DCCCNANF-24.000000	Taitien晶振	X3	MHz Crystal	24MHz	-20°C ~ 70°C
X3FBPDNANF-37.400000	Taitien晶振	X3	MHz Crystal	37.4MHz	-30°C ~ 85°C
X3FEECNANF-24.000000	Taitien晶振	X3	MHz Crystal	24MHz	-20°C ~ 70°C
X3HCECNANF-25.000000	Taitien晶振	X3	MHz Crystal	25MHz	-20°C ~ 70°C
X3LEECNANF-50.000000	Taitien晶振	X3	MHz Crystal	50MHz	-20°C ~ 70°C
XJGPPCAANF-25.000000	Taitien晶振	XJ	MHz Crystal	25MHz	-20°C ~ 70°C
XJDECCAANF-4.194304	Taitien晶振	XJ	MHz Crystal	4.194304MHz	-20°C ~ 70°C
X2HCCCNANF-12.000000	Taitien晶振	X2	MHz Crystal	12MHz	-20°C ~ 70°C
XJCBBIAANF-10.368000	Taitien晶振	XJ	MHz Crystal	10.368MHz	-10°C ~ 60°C
