首頁進口晶振泰藝晶振6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000

6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000

編號：44668879
頻率：8MHZ
尺寸：5.0*3.2mm

6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000，尺寸5032mm,頻率8MHZ，TAITIEN臺灣晶振，泰藝石英晶體，5032mm貼片晶振，四腳貼片晶振，石英貼片晶振，石英晶體諧振器，SMD晶振，SMD晶體諧振器，無源石英晶...

6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000，尺寸5032mm,頻率8MHZ，TAITIEN臺灣晶振，泰藝石英晶體，5032mm貼片晶振，四腳貼片晶振，石英貼片晶振，石英晶體諧振器，SMD晶振，SMD晶體諧振器，無源石英晶振，無源晶振，石英晶振，低損耗晶振，低功耗晶振，高質量晶振，高性能晶振，藍牙專用晶振，GPS定位系統晶振，顯示器專用晶振，電腦外圍設備晶振，具有低功耗高性能的特點。
石英晶振產品適用于范圍廣泛，尤其適合用于藍牙，GPS，顯示器，電視(FPD/FTF LCD)，電腦外圍設備等領域。6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000.

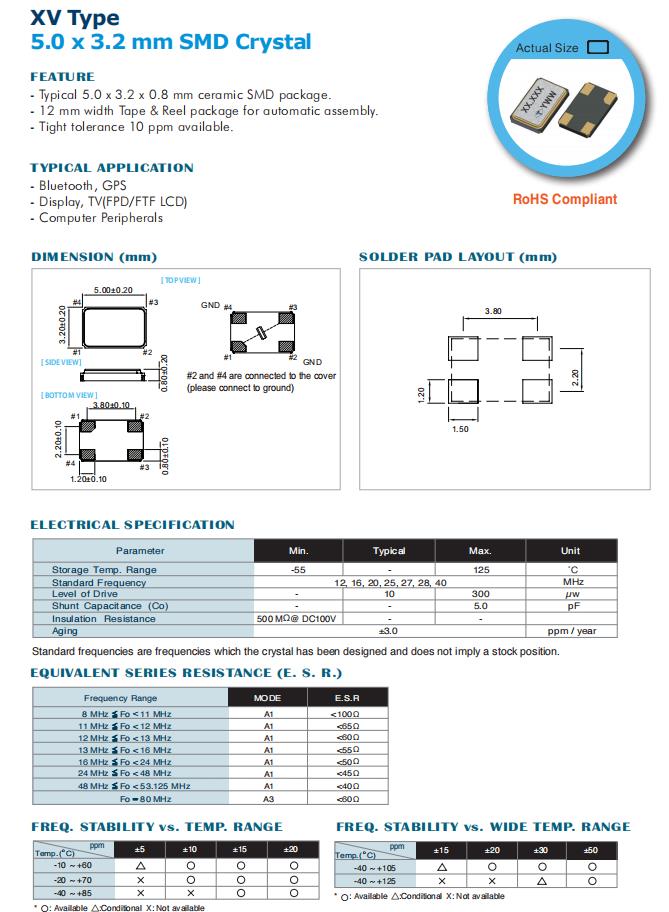

6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000 參數表

Parameter	Min.	Typical	Max .	Unit
Storage Temp . Range	--55	-	125
Standard Frequency	12, 16, 20, 25, 27, 28, 40			MHz
Level of Drive	-	10	300	µw
Shunt Capacitance (Co)	-	-	5.0	pF
Insulation Resistance 500 M?@ DC100V		-	-
Aging	±3.0			ppm / year

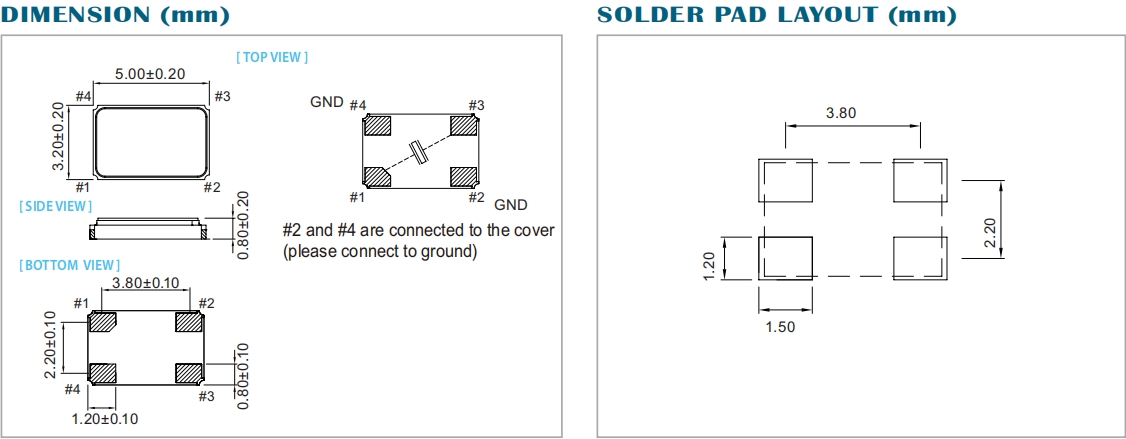

6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000 尺寸圖
6G電腦外圍設備晶振,泰藝5032諧振器,XVHEELNANF-8.000000
石英水晶振子產品特性：

-典型的5.0x3.2x0.8mm陶瓷SMD封裝。

- 12毫米寬的磁帶和卷軸包裝，用于自動組裝。

-緊密公差10ppm可用。

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency	Operating Temperature 工作溫度
XXDCCCNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-20°C ~ 70°C
XXGEGLNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXGGGINANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-10°C ~ 60°C
XXDGHHPANF-20.000000	Taitien晶振	XX	MHz Crystal	20MHz	-40°C ~ 125°C
XXCGGINANF-18.432000	Taitien晶振	XX	MHz Crystal	18.432MHz	-10°C ~ 60°C
XXBBBCNANF-16.000000	Taitien晶振	XX	MHz Crystal	16MHz	-20°C ~ 70°C
XXHCCLNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXBBBCNANF-26.000000	Taitien晶振	XX	MHz Crystal	26MHz	-20°C ~ 70°C
XXGPPLNANF-20.000000	Taitien晶振	XX	MHz Crystal	20MHz	-40°C ~ 85°C
XXEBCLNANF-40.000000	Taitien晶振	XX	MHz Crystal	40MHz	-40°C ~ 85°C
XXCCCCNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXHCECNANF-26.690000	Taitien晶振	XX	MHz Crystal	26.69MHz	-20°C ~ 70°C
XXHEGCNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXHCCCNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXHEECNANF-30.000000	Taitien晶振	XX	MHz Crystal	30MHz	-20°C ~ 70°C
XXCCEINANF-27.120000	Taitien晶振	XX	MHz Crystal	27.12MHz	-10°C ~ 60°C
XXCBBCNANF-24.000000	Taitien晶振	XX	MHz Crystal	24MHz	-20°C ~ 70°C
XXHCELNANF-26.000000	Taitien晶振	XX	MHz Crystal	26MHz	-40°C ~ 85°C
XXEBBCNANF-40.000000	Taitien晶振	XX	MHz Crystal	40MHz	-20°C ~ 70°C
XXCBPLNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXDPBISANF-16.000000	Taitien晶振	XX	MHz Crystal	16MHz	-10°C ~ 60°C
XXHEELNANF-18.432000	Taitien晶振	XX	MHz Crystal	18.432MHz	-40°C ~ 85°C
XXFPPLNANF-32.000000	Taitien晶振	XX	MHz Crystal	32MHz	-40°C ~ 85°C
XXHEELNANF-24.000000	Taitien晶振	XX	MHz Crystal	24MHz	-40°C ~ 85°C
XXCCCLNANF-49.152000	Taitien晶振	XX	MHz Crystal	49.152MHz	-40°C ~ 85°C
XXDBPLNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXCCCCNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-20°C ~ 70°C
XXCGGLNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXGDDCNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-20°C ~ 70°C
XXGEHHNANF-24.000000	Taitien晶振	XX	MHz Crystal	24MHz	-40°C ~ 125°C
XXHEELNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXPEELNANF-16.000000	Taitien晶振	XX	MHz Crystal	16MHz	-40°C ~ 85°C
XXHCECAANF-26.690000	Taitien晶振	XX	MHz Crystal	26.69MHz	-20°C ~ 70°C
XXBBBCNANF-32.000000	Taitien晶振	XX	MHz Crystal	32MHz	-20°C ~ 70°C
XXDPPCNANF-27.000000	Taitien晶振	XX	MHz Crystal	27MHz	-20°C ~ 70°C
XXGEELNANF-25.000000	Taitien晶振	XX	MHz Crystal	25MHz	-40°C ~ 85°C
XXHCCLNANF-12.288000	Taitien晶振	XX	MHz Crystal	12.288MHz	-40°C ~ 85°C
XVCCECNANF-25.000000	Taitien晶振	XV	MHz Crystal	25MHz	-20°C ~ 70°C
XXBBBCAANF-26.000000	Taitien晶振	XX	MHz Crystal	26MHz	-20°C ~ 70°C
XXHEELAANF-18.432000	Taitien晶振	XX	MHz Crystal	18.432MHz	-40°C ~ 85°C
XXBBCLNANF-16.000000	Taitien晶振	XX	MHz Crystal	16MHz	-40°C ~ 85°C
XXFBBLNANF-20.000000	Taitien晶振	XX	MHz Crystal	20MHz	-40°C ~ 85°C
XXGBCLNANF-24.000000	Taitien晶振	XX	MHz Crystal	24MHz	-40°C ~ 85°C
XVEBBCNANF-40.000000	Taitien晶振	XV	MHz Crystal	40MHz	-20°C ~ 70°C
XVBCCLNANF-20.000000	Taitien晶振	XV	MHz Crystal	20MHz	-40°C ~ 85°C
XVCCCLNANF-25.000000	Taitien晶振	XV	MHz Crystal	25MHz	-40°C ~ 85°C
XVDGGHNANF-20.000000	Taitien晶振	XV	MHz Crystal	20MHz	-40°C ~ 125°C
XVHCELNANF-25.000000	Taitien晶振	XV	MHz Crystal	25MHz	-40°C ~ 85°C
XVCEELNANF-10.000000	Taitien晶振	XV	MHz Crystal	10MHz	-40°C ~ 85°C
XVDEECNANF-12.000000	Taitien晶振	XV	MHz Crystal	12MHz	-20°C ~ 70°C
XVDEECNANF-16.000000	Taitien晶振	XV	MHz Crystal	16MHz	-20°C ~ 70°C
XVDGGCNANF-27.000000	Taitien晶振	XV	MHz Crystal	27MHz	-20°C ~ 70°C
XVDGGHNANF-28.000000	Taitien晶振	XV	MHz Crystal	28MHz	-40°C ~ 125°C
XVDGHHNANF-27.000000	Taitien晶振	XV	MHz Crystal	27MHz	-40°C ~ 125°C
XVECCLNANF-13.000000	Taitien晶振	XV	MHz Crystal	13MHz	-40°C ~ 85°C
XVFEGCNANF-16.000000	Taitien晶振	XV	MHz Crystal	16MHz	-20°C ~ 70°C
XVHCCLNANF-16.000000	Taitien晶振	XV	MHz Crystal	16MHz	-40°C ~ 85°C
XVHCELNANF-14.318180	Taitien晶振	XV	MHz Crystal	14.31818MHz	-40°C ~ 85°C
XVHCELNANF-24.000000	Taitien貼片石英晶振	XV	MHz Crystal	24MHz	-40°C ~ 85°C
XVHCELNANF-8.000000	Taitien晶振	XV	MHz Crystal	8MHz	-40°C ~ 85°C
XVHDDCNANF-25.000000	Taitien晶振	XV	MHz Crystal	25MHz	-20°C ~ 70°C
XVHEELNANF-24.000000	Taitien晶振	XV	MHz Crystal	24MHz	-40°C ~ 85°C
XVHEELNANF-27.000000	Taitien晶振	XV	MHz Crystal	27MHz	-40°C ~ 85°C
XVHEELNANF-8.000000	Taitien晶振	XV	MHz Crystal	8MHz	-40°C ~ 85°C
XXCBELNANF-12.000000	Taitien晶振	XX	MHz Crystal	12MHz	-40°C ~ 85°C
XXCBBCNANF-32.000000	Taitien晶振	XX	MHz Crystal	32MHz	-20°C ~ 70°C
XVFBCLNANF-12.000000	Taitien晶振	XV	MHz Crystal	12MHz	-40°C ~ 85°C
XVGBBCNANF-20.000000	Taitien晶振	XV	MHz Crystal	20MHz	-20°C ~ 70°C
XVCEECNANF-50.000000	Taitien晶振	XV	MHz Crystal	50MHz	-20°C ~ 70°C
XVFBGCNANF-12.000000	Taitien晶振	XV	MHz Crystal	12MHz	-20°C ~ 70°C
XVGBCLNANF-24.000000	Taitien晶振	XV	MHz Crystal	24MHz	-40°C ~ 85°C
XVGBELNANF-27.000000	Taitien晶振	XV	MHz Crystal	27MHz	-40°C ~ 85°C
XVGBELNANF-8.000000	Taitien晶振	XV	MHz Crystal	8MHz	-40°C ~ 85°C
