泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振

編號：56921892
頻率：48MHZ
尺寸：2.0*1.6mm

泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振，尺寸2016mm,頻率48MHZ，TAITIEN石英晶振，泰藝無源晶振，石英振動子，四腳貼片晶振，金屬面貼片晶振，無源晶體，SMD石英晶體，無源SMD晶振，石英貼片晶振...

泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振，尺寸2016mm,頻率48MHZ，TAITIEN石英晶振，泰藝無源晶振，石英振動子，四腳貼片晶振，金屬面貼片晶振，無源晶體，SMD石英晶體，無源SMD晶振，石英貼片晶振，2016mm臺灣晶振，輕薄型晶振，SMD晶體諧振器，SMD晶振，石英晶振，小型設備晶振，便攜式設備晶振，移動電話專用晶振，藍牙晶振，數字視頻專用晶振，無線局域網晶振，辦公自動化晶振，音頻晶振，低損耗晶振，低功耗晶振，高性能晶振，高質量晶振，具有良好的耐壓性能。
SMD晶振產品比較適合用于移動電話，無線局域網，藍牙，辦公自動化，音頻和視頻，小型設備，便攜式設備等領域。泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振.

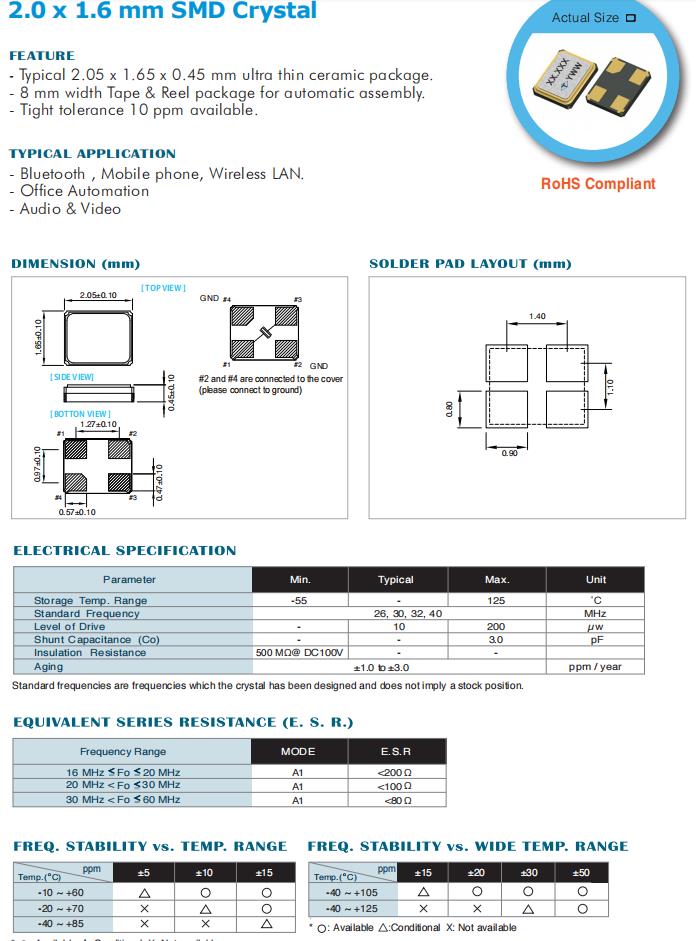

泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振 參數表

Parameter	Min.	Typical	Max .	Unit
Storage Temp . Range	--55	-	125
Standard Frequency	26 , 30, 32, 40			MHz
Level of Drive	-	10	200	µw
Shunt Capacitance (Co)	-	-	3.0	pF
Insulation Resistance 500 M?@ DC100V		-	-
Aging	±1.0 to ±3.0			ppm / year

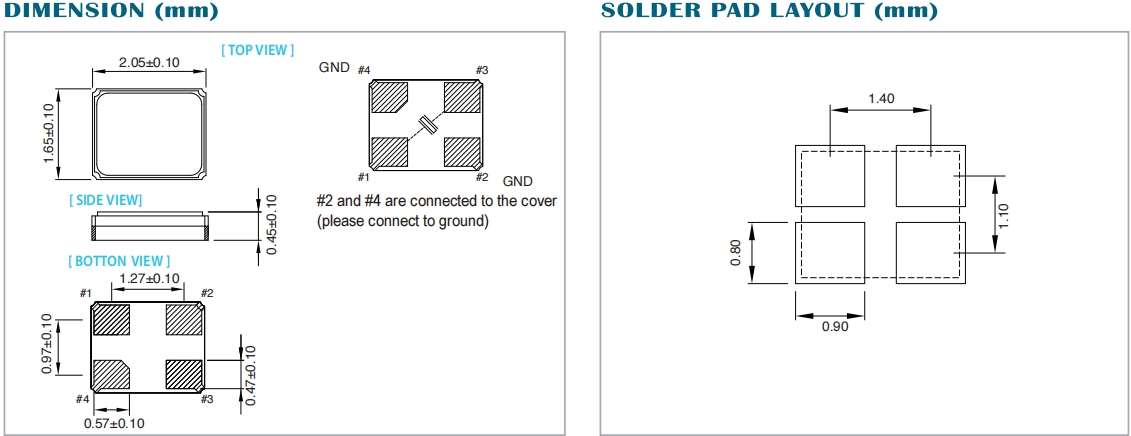

泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振 尺寸圖
泰藝TAITIEN晶體/XZLEECNANF-48.000000/6G無線局域網專用晶振
貼片無源晶振產品特性：

—典型的2.05x1.65x0.45mm超薄陶瓷封裝。

- 8毫米寬的磁帶和卷軸包裝，用于自動組裝。

-緊密公差10ppm可用。

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency	Operating Temperature 工作溫度
XZAEECNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZAEECNANF-27.000000	Taitien晶振	XZ	MHz Crystal	27MHz	-20°C ~ 70°C
XZAEECNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-20°C ~ 70°C
XZAEECNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZAEECNANF-38.400000	Taitien晶振	XZ	MHz Crystal	38.4MHz	-20°C ~ 70°C
XZAEECNANF-48.000000	Taitien晶振	XZ	MHz Crystal	48MHz	-20°C ~ 70°C
XZLEECNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZLEECNANF-27.000000	Taitien晶振	XZ	MHz Crystal	27MHz	-20°C ~ 70°C
XZLEECNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-20°C ~ 70°C
XZLEECNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-20°C ~ 70°C
XZLEECNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZLEECNANF-38.400000	Taitien晶振	XZ	MHz Crystal	38.4MHz	-20°C ~ 70°C
XZLEECNANF-40.000000	Taitien晶振	XZ	MHz Crystal	40MHz	-20°C ~ 70°C
XZLEECNANF-48.000000	Taitien晶振	XZ	MHz Crystal	48MHz	-20°C ~ 70°C
XZLEECNANF-50.000000	Taitien晶振	XZ	MHz Crystal	50MHz	-20°C ~ 70°C
XZAEECNANF-50.000000	Taitien晶振	XZ	MHz Crystal	50MHz	-20°C ~ 70°C
XZAEECNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-20°C ~ 70°C
XZAEECNANF-40.000000	Taitien晶振	XZ	MHz Crystal	40MHz	-20°C ~ 70°C
XZAEELNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-40°C ~ 85°C
XZAEELNANF-27.000000	Taitien晶振	XZ	MHz Crystal	27MHz	-40°C ~ 85°C
XZAEELNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-40°C ~ 85°C
XZAEELNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZAEELNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-40°C ~ 85°C
XZAEELNANF-40.000000	Taitien晶振	XZ	MHz Crystal	40MHz	-40°C ~ 85°C
XZLEELNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-40°C ~ 85°C
XZLEELNANF-27.000000	Taitien晶振	XZ	MHz Crystal	27MHz	-40°C ~ 85°C
XZLEELNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-40°C ~ 85°C
XZLEELNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZLEELNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-40°C ~ 85°C
XZLEELNANF-38.400000	Taitien晶振	XZ	MHz Crystal	38.4MHz	-40°C ~ 85°C
XZLEELNANF-40.000000	Taitien晶振	XZ	MHz Crystal	40MHz	-40°C ~ 85°C
XZLEELNANF-50.000000	Taitien晶振	XZ	MHz Crystal	50MHz	-40°C ~ 85°C
XZAEELNANF-50.000000	Taitien晶振	XZ	MHz Crystal	50MHz	-40°C ~ 85°C
XZLEELNANF-48.000000	Taitien晶振	XZ	MHz Crystal	48MHz	-40°C ~ 85°C
XZAEELNANF-48.000000	Taitien晶振	XZ	MHz Crystal	48MHz	-40°C ~ 85°C
XZAEELNANF-38.400000	Taitien晶振	XZ	MHz Crystal	38.4MHz	-40°C ~ 85°C
XZGEECNANF-24.000000	Taitien晶振	XZ	MHz Crystal	24MHz	-20°C ~ 70°C
XZHBBCNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZLCCCNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-20°C ~ 70°C
XZABBCNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZABPCNANF-40.000000	Taitien晶振	XZ	MHz Crystal	40MHz	-20°C ~ 70°C
XZAPPCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZBBBCNANF-26.000000	Taitien泰藝晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZBBCCNANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZBCCCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZCBBCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZCBBCNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZCEECNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-20°C ~ 70°C
XZDBPCNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZIEELNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-40°C ~ 85°C
XZLEFLNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZDCELNANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-40°C ~ 85°C
XZDCELNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZCEECAANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-20°C ~ 70°C
XZDCELAANF-27.120000	Taitien晶振	XZ	MHz Crystal	27.12MHz	-40°C ~ 85°C
XZBBBCAANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-20°C ~ 70°C
XZBBBDAANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-30°C ~ 85°C
XZCBBCAANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZHBBCAANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-20°C ~ 70°C
XZBPELAANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZCBCLAANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-40°C ~ 85°C
XZCBELAANF-24.000000	Taitien晶振	XZ	MHz Crystal	24MHz	-40°C ~ 85°C
XZBBCDAANF-26.000000	Taitien晶振	XZ	MHz Crystal	26MHz	-30°C ~ 85°C
XZABPLNANF-24.000000	Taitien晶振	XZ	MHz Crystal	24MHz	-40°C ~ 85°C
XZBBCLNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-40°C ~ 85°C
XZBBELNANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-40°C ~ 85°C
XZBPELNANF-30.000000	Taitien晶振	XZ	MHz Crystal	30MHz	-40°C ~ 85°C
XZCBCLNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-40°C ~ 85°C
XZCBELNANF-24.000000	Taitien晶振	XZ	MHz Crystal	24MHz	-40°C ~ 85°C
XZDBPLNANF-24.000000	Taitien晶振	XZ	MHz Crystal	24MHz	-40°C ~ 85°C
XZDPPLNANF-32.000000	Taitien晶振	XZ	MHz Crystal	32MHz	-40°C ~ 85°C
XZAPPCAANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
XZDBPCAANF-16.000000	Taitien晶振	XZ	MHz Crystal	16MHz	-20°C ~ 70°C
