石英晶體振蕩器
- 編號：7961204
- 頻率：27.120MHz

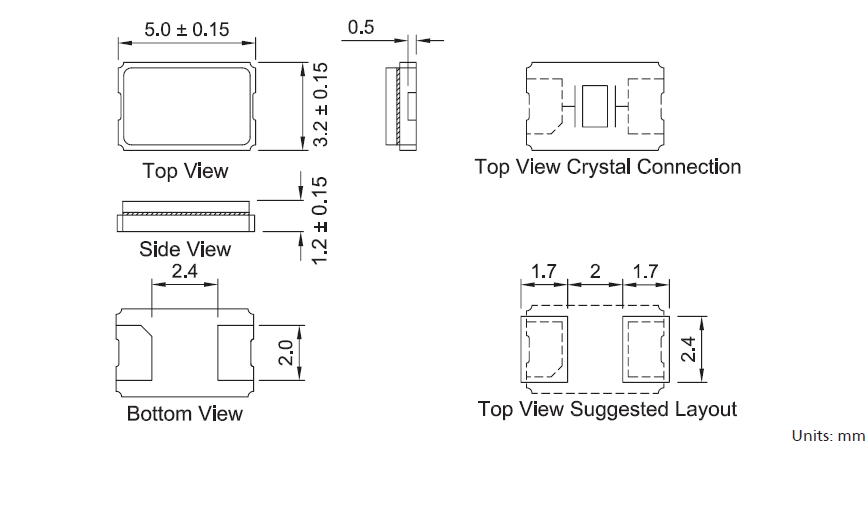

- 尺寸：5.0*3.2mm
7A-27.120MAAE-T,7A,TXC晶振
臺灣的txc晶振成立于1989年,多年的晶振經驗是他質量得到了保證,陶瓷諧振器,這款7A-27.120MAAE-T型號為7A的無源貼片晶振深受廣大客戶的青睞,27.120MHz的頻率擁有±30的頻率偏差,5023的尺寸被廣泛運用的到汽車,洗衣機,空...
.jpg)
7A-27.120MAAE-T,7A,TXC晶振,臺灣的txc晶振成立于1989年,多年的晶振經驗是他質量得到了保證,陶瓷諧振器,這款7A-27.120MAAE-T型號為7A的無源貼片晶振深受廣大客戶的青睞,27.120MHz的頻率擁有±30的頻率偏差,5023的尺寸被廣泛運用的到汽車,洗衣機,空調等許多行業,
7A-27.120MAAE-T,7A,TXC晶振
| 原廠編碼 | 7A-27.120MAAE-T |
| 廠家 | TXC晶振 |
| 型號 | 7A |
| 頻率偏差 | ±30ppm |
| 負載電容 | 12pF |
| 工作溫度 | -20°C ~ 70°C |
| 電阻 | 50 Ohm |
| 原廠編碼 | 7A-27.120MAAJ-T |
| 廠家 | TXC晶振 |
| 型號 | 7A |
| 頻率偏差 | ±30ppm |
| 負載電容 | 18pF |
| 工作溫度 | -20°C ~ 70°C |
| 電阻 | 50 Ohm |
格截圖.jpg)
| 7A-27.120MAAE-T | TXC CORPORATION | 7A | 27.12MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -20 ℃~ 70℃ |
| 7A-24.000MAAJ-T | TXC CORPORATION | 7A | 24MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-16.000MAAJ-T | TXC CORPORATION | 7A | 16MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-8.000MAAJ-T | TXC CORPORATION | 7A | 8MHz | ±30ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
| 7A-12.000MAAJ-T | TXC CORPORATION | 7A | 12MHz | ±30ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
| 7A-25.000MAAJ-T | TXC CORPORATION | 7A | 25MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-27.120MAAJ-T | TXC CORPORATION | 7A | 27.12MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-24.000MAHE-T | TXC CORPORATION | 7A | 24MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -40°C ~ 85°C |
| 7A-10.000MAAJ-T | TXC CORPORATION | 7A | 10MHz | ±30ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
| 7A-25.000MAAE-T | TXC CORPORATION | 7A | 25MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -20°C ~ 70°C |
| 7A-10.000MAAE-T | TXC CORPORATION | 7A | 10MHz | ±30ppm | ±30ppm | 12pF | 80 Ohm | -20°C ~ 70°C |
| 7A-14.7456MAAJ-T | TXC CORPORATION | 7A | 14.7456MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-18.432MAAJ-T | TXC CORPORATION | 7A | 18.432MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-12.288MAAJ-T | TXC CORPORATION | 7A | 12.288MHz | ±30ppm | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
| 7A-20.000MAAJ-T | TXC CORPORATION | 7A | 20MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-28.63636MAAJ-T | TXC CORPORATION | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-16.000MAHE-T | TXC CORPORATION | 7A | 16MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -40°C ~ 85°C |
| 7A-48.000MAAJ-T | TXC CORPORATION | 7A | 48MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-27.000MAAJ-T | TXC CORPORATION | 7A | 27MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-26.000MAAJ-T | TXC CORPORATION | 7A | 26MHz | ±30ppm | ±30ppm | 18pF | 50 Ohm | -20°C ~ 70°C |
| 7A-20.000MAHE-T | TXC CORPORATION | 7A | 20MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -40°C ~ 85°C |
| 7A-25.000MAHE-T | TXC CORPORATION | 7A | 25MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -40°C ~ 85°C |
| 7A-14.7456MAAE-T | TXC CORPORATION | 7A | 14.7456MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -20°C ~ 70°C |
| 7A-14.31818MAAE-T | TXC CORPORATION | 7A | 14.31818MHz | ±30ppm | ±30ppm | 12pF | 50 Ohm | -20°C ~ 70°C |
