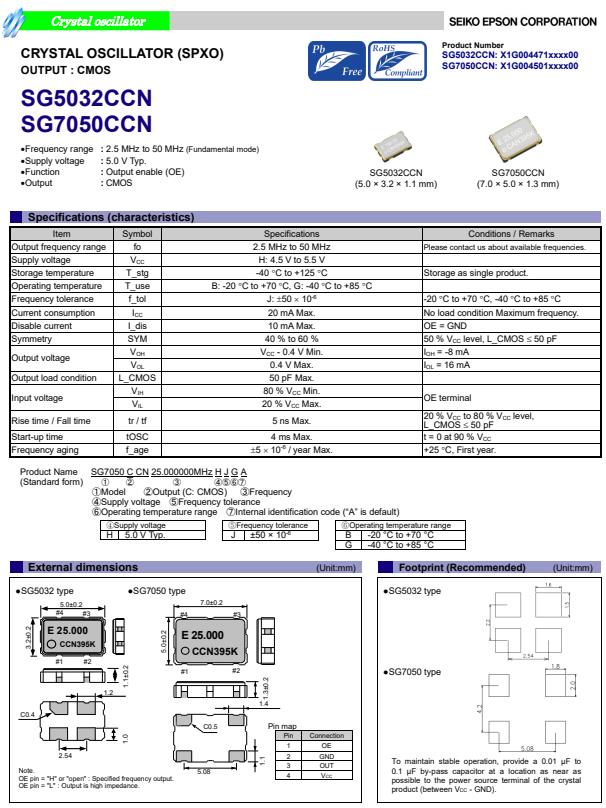

智能家居應用高品質晶振X1G004501000600，隨著市場在不斷擴大以及高速發展，愛普生公司在產品線上做出些許調整，推出了新一代的石英晶體振蕩器，以適應當下新興市場的應用，其中包含模塊，藍牙通信，智能家居，物聯網，AI等領域，這些領域中隱藏許多機會在內，唯有仔細觀察，研發出適合的晶振產品，愛普生公司與此同時推出了SG7050CCN晶振，編碼X1G004501000600，頻率20.000000兆赫，輸出WaveCMOS，電源電壓4.50至5.50 V，尺寸(LxWxH)7.00 x 5.00 x 1.50 mm，操作溫度-40至+85°C，頻率公差±50ppm，具備良好的耐壓性能以及穩定性能，非常適合用于智能家居，醫療，通信設備等領域。

Product Number	愛普生晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
Q3805CA10027100	EG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
Q3805CA10027200	EG-2121CA	614.400000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
Q3805CA10027400	EG-2121CA	135.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1G004501000100	SG7050CCN	4.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501000300	SG7050CCN	16.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501000400	SG7050CCN	48.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501000500	SG7050CCN	11.059200 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501000600	SG7050CCN	20.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501000800	SG7050CCN	25.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501000900	SG7050CCN	33.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001000	SG7050CCN	40.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001100	SG7050CCN	44.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001200	SG7050CCN	49.152000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001400	SG7050CCN	4.915200 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001500	SG7050CCN	8.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001600	SG7050CCN	5.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C
X1G004501001700	SG7050CCN	24.000000 MHz	7.00 x 5.00 x 1.50 mm	CMOS	4.500 to 5.500 V	-40 to 85 °C

有源晶振的頻率輸出必定要以波形作為輸出載體，而波形輸出也必定會伴隨某個負載值。在實際應用中，波形負載也是貼片石英晶振的重要參數指標之一。選擇不當?shù)脑挘p則導致晶振無法正常工作，電子產品功能無法實現，重則損壞模塊甚至整機設備。
