道路交通燈控制器應用專用的OSC晶振X1G005901000615，愛普生公司是一家極其具有創新能力，以及持續成長型的知名企業，通過自身不懈的堅持和刻苦鉆研的精神，使得其在晶體行業擁有領先的位置，專注于貼片石英晶振產品為其帶來意想不到驚喜，同時也得到廣大用戶的認可，秉持專業和敬業的精神，能夠為其戰勝一切的困難，并吸引更多同行的一起前行。

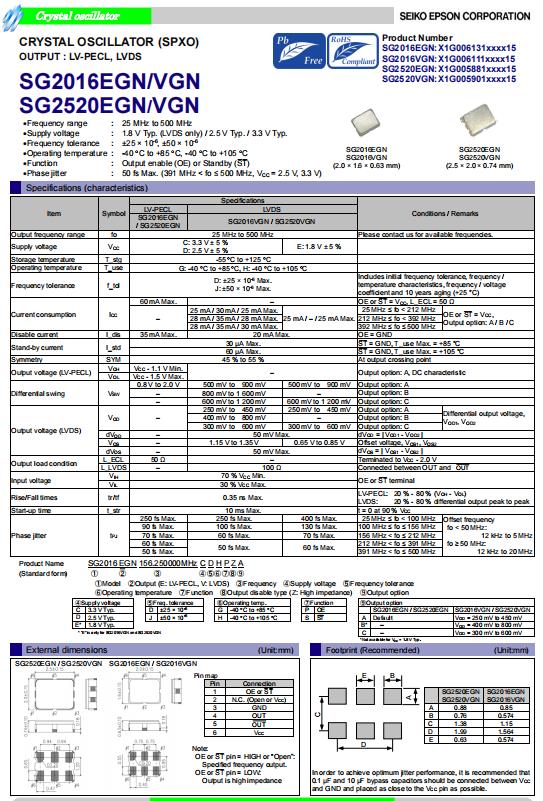

日本愛普生公司推出了這款高性能的SG2520VGN晶振，編碼X1G005901000615，頻率156.250000兆赫，輸出WaveLVDS，電源電壓2.38 ~ 2.62 V，尺寸(LxWxH)2.50 x 2.00 x 0.84 mm，操作溫度-40至+85°C，頻率公差±50ppm，額外的OptionsN /OSC TypeClock OSC，這是一款2520mm的有源晶振，SPXO振蕩器，具有一定的耐壓性能，十分適合用于道路交通燈控制器，智能電表，華為手機，投影儀等領域。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005881000115	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-50 ppm
X1G005881000215	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-25 ppm
X1G005881000315	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1G005881000515	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm
X1G005901000215	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS差分晶振	1.710 to 1.890 V	-40 to 85 °C	+/-50 ppm
X1G005901000315	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1G005901000415	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C	+/-50 ppm
X1G005901000615	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-50 ppm
X1G005901000715	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C	+/-50 ppm
X1G005901000815	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C	+/-50 ppm
X1G005921000115	SG2520EHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C	+/-20 ppm
X1G005941000115	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C	+/-20 ppm
X1G005941000215	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-20 ppm
X1G005941000315	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C	+/-20 ppm
X1G005941000415	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C	+/-20 ppm
X1G005941000515	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C	+/-20 ppm
X1G005941000615	SG2520VHN	155.520000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C	+/-20 ppm
X1G005941000715	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C	+/-20 ppm
X1G005941000815	SG2520VHN	174.703000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C	+/-20 ppm
X1G005941000915	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C	+/-20 ppm
X1G005941001015	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C	+/-20 ppm
