關于Quarztechnik公司簡介

來源：http://www.fuleikeji.cn 作者：康華爾電子 2023年09月07

About Quarztechnik Company Introduction
關于Quarztechnik公司簡介

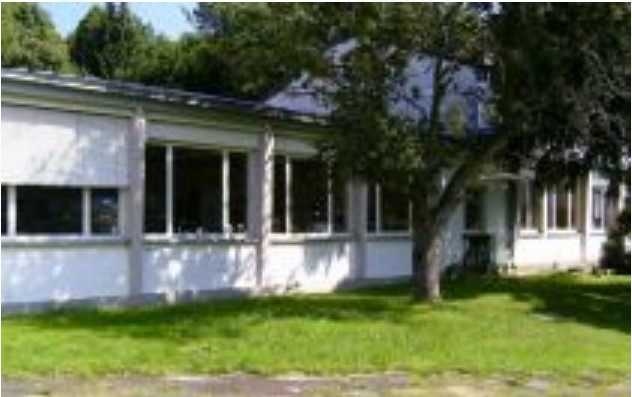

As manufacturers of oscillating quartz crystals and oscillators in Germany for over 50 years, we make a wide range of products- from channel crystals, oscillating quartz crystals and quartz oscillators to sensor elements based on piezoelectric monocrystals. Our products are used in all types of radio application, as precision crystals for manufacturing oscillators and components for pressure, temperature and mass-sensitive sensors.
作為在德國擁有50多年歷史的石英晶振和晶體振蕩器制造商，我們生產各種產品-從通道晶體、振蕩石英晶體和石英振蕩器到基于壓電單晶的傳感器元件。我們的產品用于所有類型的無線電應用，如制造振蕩器的精密晶體和壓力、溫度和質量敏感傳感器的元件。

Along with standard oscillators, we also manufacture TCXOs and VCTCXOs
除了標準振蕩器，我們還生產TCXOs和VCTCXOs壓控溫補晶振

We are one of the leading quartz-crystal manufacturers in Germany. Our strength lies in our ability to turn our customers’ specific requirements into reality within very short timeframes. Our wide product range enables us to handle many aspects of quartz technology, giving the customer good value for money and stable prices.

我們是德國主要的貼片石英晶振制造商之一。我們的優勢在于我們有能力在極短的時間內將客戶的具體要求變成現實。我們廣泛的產品范圍使我們能夠處理石英技術的許多方面，為客戶提供良好的性價比和穩定的價格。

Certifications

證書

The DQS (Germany Quality Assurance Association) has awarded Quarztechnik Daun GmbH the following Certificates: DIN EN ISO 9001 and IQ NET 1909001 DE 004923QM.
DQS(德國質量保證協會)授予Quarztechnik Daun GmbH以下證書:DIN EN ISO 9001和智商網1909001 DE 004923QM.

These Certificates were awarded for production and marketing excellence. Internal audits are conducted regularly to maintain the high quality standards and are endorsed by annual audits conducted by the DQS.
這些證書是為生產和營銷的卓越而頒發的。定期進行內部審計以保持高質量標準，并得到DQS進行的年度審計的認可。

Quarztechnik晶振產品：

高頻標準晶體

類型	頻率	規模
QTC7A	6.0 - 150.0MHz	5.0 x 7.0 x 1.0mm
QTC7B	6.0 - 150.0MHz	5.0 x 7.0 x 1.0mm
QTC6A	8.0 - 160.0MHz	3.5 x 6.0 x 1.0mm
QTC6B	8.0 - 160.0MHz	3.5 x 6.0 x 1.0mm
QTC5A	8.0 - 160.0MHz	3.2 x 5.0 x 0.8mm
QTC5B	8.0 - 160.0MHz	3.2 x 5.0 x 0.8mm
QTC4A	12.0 - 52.0MHz	2.5 x 4.0 x 0.8mm
QTC32	10.0 - 60.0MHz	2.5 x 3.2 x 0.8mm
QTC25	16.0 - 50.0MHz	2.0 x 2.5 x 0.6mm
QTC20	20.0 - 52.0MHz	1.6 x 2.0 x 0.5mm
TCS	3.2 - 70.0MHz	4.5 x 11.4 x 4.3mm
QTC4	3.2 - 70.0MHz	4.7 x 13.0 x 5.1mm
QTCL	3.2 - 70.0MHz	4.6 x 11.0 x 3.5mm
HC-49/U-SMD	1.8.0 - 160.0MHz	5.0x11.0x13.2/10.6/9.2mm
UM-5 SMD	10.0 - 160.0MHz	4.0 x 8.0 x 10.5mm
UM-1 SMD	8.0 - 160.0MHz	4.0 x 8.0 x 12.75mm
HC-49/U	1.8 - 160.0MHz	4.5 x 11.0 x 13.2mm
UM-5	10.0 - 160.0MHz	3.2 x 7.9 x 6.0mm
UM-1	8.0 - 160.0MHz	3.2 x 7.9 x 8.0mm

低頻標準晶體

TYPE	FREQUENCY	DIMENSIONS
QTTC4	32.768 kHz	1.5 x 4.1 x 0.75mm
QTTC3	32.768 kHz	1.5 x 3.2 x 0.8mm
QTTP8	32.768 kHz	3.7 x 8.7 x 2.5 mm

高頻精密晶體

TYPE	FREQUENCY	DIMENSIONS
QTC-HC35U	5.0 - 250.0 MHz	9.1 x 9.1 x 6.6mm
QTTC-HC35U	5.0 - 250.0 MHz	9.1 x 9.1 x 6.6mm
QTC-HC48U	0.8 - 250.0 MHz	8.7 x 19.0 x 19.8mm
QTTC-HC48U	0.8 - 250.0 MHz	8.7 x 19.0 x 19.8mm
QTC-HC49U	1.8 - 250.0 MHz	4.5 x 11.0 x 13.2/10.6/9.2mm
QTTC-HC49U	1.8 - 250.0 MHz	4.5 x 11.0 x 13.2/10.6/9.2mm
QTC-HC49U3	1.8 - 250.0 MHz	4.5 x 11.0 x 13.2/10.6/9.2mm
QTTC-HC49U3	1.8 - 250.0 MHz	4.5 x 11.0 x 13.2/10.6/9.2mm
QTC-HC49USMD	1.8 - 250.0 MHz	5.0 x 11.0 x 13.2/10.6/9.2mm
QTTC-HC49USMD	1.8 - 250.0 MHz	5.0 x 11.0 x 13.2/10.6/9.2mm
QTC-HC50U	1.8 - 250.0 MHz	4.5 x 11.0 x 13.2/10.6/9.2mm
QTTC-HC50U	1.8 - 250.0 MHz	4.5 x 11.0 x 13.2/10.6/9.2mm
QTC-HC51U	0.8 - 250.0 MHz	8.7 x 19.0 x 19.8mm
QTTC-HC51U	0.8 - 250.0 MHz	8.7 x 19.0 x 19.8mm
QTC-HC52U	5.0 - 250.0 MHz	3.2 x 8.0 x 8.6/7.8/5.9mm
QTTC-HC52U	5.0 - 250.0 MHz	3.2 x 8.0 x 8.6/7.8/5.9mm
QTC-HC52U3	5.0 - 250.0 MHz	3.2 x 8.0 x 8.6/7.8/5.9mm
QTTC-HC52U3	5.0 - 250.0 MHz	3.2 x 8.0 x 8.6/7.8/5.9mm
QTC-HC52USMD	5.0 - 250.0 MHz	3.4 x 8.0 x 8.6/7.8/5.9mm
QTTC-HC52USMD	5.0 - 250.0 MHz	3.4 x 8.0 x 8.6/7.8/5.9mm

低頻精密晶體

TYPE	FREQUENCY	DIMENSIONS
QTNF-HC13U	10.0 - 190.0 kHz	8.8 x 19.1 x 25.3/38.5/51.5/64.1mm
QTNF-HC34U	10.0 - 190.0 kHz	8.7 x 19.0 x 25.3/38.5/51.5/64.1mm
QTNF-HC35U	10.0 - 1100.0 kHz	9.1 x 9.1 x 15.5/25.0/39.0/60.0mm
QTNF-HC48U	45.0 - 1100.0 kHz	8.7 x 19.0 x 19.8mm
QTNF-HC49U	400.0 - 1100.0 kHz	4.5 x 11.0 x 13.2/10.6mm
QTNF-HC49U3	240.0 - 1100.0 kHz	4.5 x 11.0 x 13.2/10.6mm
QTNF-HC49USMD	240.0 - 1100.0 kHz	5.0 x 11.0 x 13.2/10.6mm
QTNF-HC51U	45.0 - 1100.0 kHz	8.7 x 19.0 x 19.8mm

標準XO

類型	頻率	規模
QTX7	1.0 - 155.52 MHz	5.0 x 7.0 x 1.4mm
QTX5	1.0 - 155.52 MHz	3.2 x 5.0 x 1.3mm
QTX3	1.0 - 75.0 MHz	2.5 x 3.2 x 1.2mm
QTCXO-DIL8	0.5 - 150.0 MHz	13.2 x 13.2 x 5.0mm
QTCXO-DIL14	0.5 - 150.0 MHz	20.7 x 13.1 x 5.0mm

精密XO

TYPE	FREQUENCY	DIMENSIONS
QTXO-DIL8	9.0 - 110.0 MHz	13.2 x 13.2 x 5.0mm
QTXO-DIL14	9.0 - 110.0 MHz	20.7 x 13.1 x 5.0mm
QTXO-DIL14/8	9.0 - 110.0 MHz	20.7 x 13.1 x 8.5mm

可編程振蕩器

TYPE	FREQUENCY	DIMENSIONS
QTPXO-DIL8	1.5 - 200.0 MHz	13.2 x 13.2 x 5.0mm
QTPXO-DIL14	1.5 - 200.0 MHz	20.7 x 13.1 x 5.0mm
QTPX7	1.5 - 200.0 MHz	5.0 x 7.0 x 1.4mm
QTPX5	1.5 - 200.0 MHz	3.2 x 5.0 x 1.3mm
QTPX3	1.5 - 200.0 MHz	2.5 x 3.2 x 1.2mm
